Thermodynamic integration

This example shows how to perform thermodynamic integration (TI).

We here demonstrate the TI from an effective harmonic potential to either EMT or MTP.

Note that the ASE EMT is very slow; the timing is:

• With MTP: takes around 16 s on Apple M1 Pro single core.

• With ASAP EMT: takes around 12 s on Apple M1 Pro single core.

• With ASE EMT: takes around 110 s on Apple M1 Pro single core.

Therefore, if ASAP is available, this exmaple uses its EMT implementation.

You can run the script either on a single core as python ./ti_example.py or in parallel as mpirun -n 9 python ./ti_example.py, where 3 * 3 = 9 (volume, temperature) grid points are parallelized over.

from itertools import product
from pathlib import Path

import numpy as np
from ase.build import bulk
from ase.parallel import parprint

import directupsampling
from directupsampling.calculators.emt import EMT
from directupsampling.effqh.effqh import EffQH
from directupsampling.plot_tools import plot
from directupsampling.ti import ThermoInt

# from directupsampling.calculators.mtp import MTP

Get pretrained EffQH and the target calculator.

resource_path = Path(directupsampling.__file__).parents[1] / "tests/resources"
calc = EMT()

# calc = MTP.read_potential(resource_path / "full_test/twostep_emt_4g_with_hs.mtp")
# calc.species = (13,)  # motep
# calc.species = ("Al",)  # mlippy

Make grid.

vmin = 13.0
vmax = 17.0
nvolumes = 2
tmin = 298.0
tmax = 500.0
ntemperatures = 2
grid_fah = product(
    np.linspace(vmin, vmax, nvolumes),
    np.linspace(tmin, tmax, ntemperatures),
)

Make an initial ASE Atoms object.

atoms = bulk("Al", "fcc", cubic=True) * 3

Make EffQH

effqh = EffQH.read_fc_fit(resource_path / "full_test/fc_fit.hdf5", atoms)

Run thermodynamic integration.

nlambdas = 5
ti = ThermoInt(
    atoms,
    effqh.calc,
    calc,
    grid_fah,
    lambdas=np.linspace(0.0, 1.0, nlambdas),
    sampling_setting={"sampling_offset": 0},
)
ti.run_sampling(nsnapshots=5, file="test.db")
fdiff_qh_to_mtp = ti.free_energy_differences

/usr/local/lib/python3.12/site-packages/ase/md/velocitydistribution.py:147: FutureWarning: `communicator` has been deprecated since ASE 3.26.0 and will be removed in ASE 3.27.0. Use `comm` instead.
  warnings.warn(msg, FutureWarning)
/usr/local/lib/python3.12/site-packages/ase/md/velocitydistribution.py:154: FutureWarning: `comm=="serial"` has been deprecated since ASE 3.26.0 and will be removed in ASE 3.27.0. Use `comm=DummyMPI()` instead.
  warnings.warn(msg, FutureWarning)
/usr/local/lib/python3.12/site-packages/ase/md/velocitydistribution.py:147: FutureWarning: `communicator` has been deprecated since ASE 3.26.0 and will be removed in ASE 3.27.0. Use `comm` instead.
  warnings.warn(msg, FutureWarning)
/usr/local/lib/python3.12/site-packages/ase/md/velocitydistribution.py:154: FutureWarning: `comm=="serial"` has been deprecated since ASE 3.26.0 and will be removed in ASE 3.27.0. Use `comm=DummyMPI()` instead.
  warnings.warn(msg, FutureWarning)

Write the TI snapshots to an ASE db format and print and save F^ah.

ti.snapshot_container.write("thermodynamic_integration.db")
parprint("Results in meV/atom:")
parprint(fdiff_qh_to_mtp * 1e3)
fdiff_qh_to_mtp.to_csv("fah.csv")

Results in meV/atom:
                     0   1
volume temperature
13.0   298.0       NaN NaN
       500.0       NaN NaN
17.0   298.0       NaN NaN
       500.0       NaN NaN

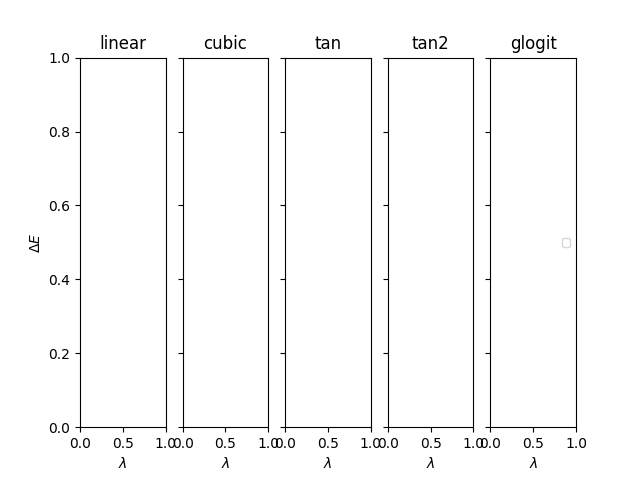

Plot ΔU as a function of λ.

plot(ti).show()

/builds/axefor/direct-upsampling/directupsampling/plot_tools.py:306: UserWarning: No artists with labels found to put in legend.  Note that artists whose label start with an underscore are ignored when legend() is called with no argument.
  ax.legend(loc="center right", fontsize=8)
